Directional Thrust Boring

Home » Products » Directional Thrust Boring

Directional thrust boring tools offer the safety you need when doing difficult jobs. Use the tool to install pipelines where you need them most. Do it all from the safety of preventing collapsing ground.

For any questions or to learn more, please contact us today. Take a look at the directional thrust boring equipment we have to offer.

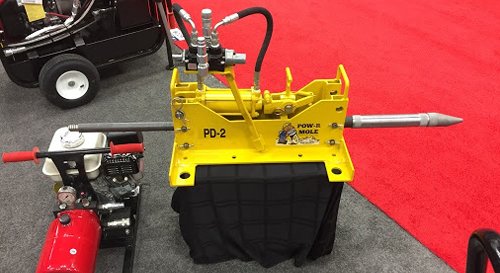

PD-2

PD-2

The PD-2 is a hydraulic service line replacement tool made in the USA. This one-man operated steerable thrust boring machine is designed to install pipes from a basement out to the curb stop, or under driveways and narrow roads. The PD-2 works great for those service lines you need to install under front porches, walkways, flower beds or circular driveways. The use of this machine will greatly increase your job production and decrease the cost of property restoration.

DIRECTIONAL THRUST BORING

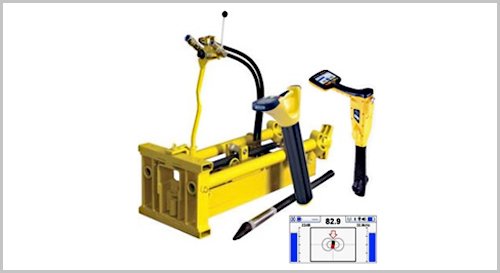

PD-4

The PD-4 was designed for use in difficult soil conditions where a pipe or cable is to be installed under a road or in an area that cannot be dug. These machines are excellent in areas where space is limited.

The PD-4 will operate from a pit only 50 inches long. Despite its small size, the PD-4 has a thrust force of 37,714 lbs @ 3,000 psi and a maximum push rate of 9 feet/minute. The PD-4 can install up to 4-inch ID pipe in most compressible soils.

PD-6

PD-6

The PD-6 was designed for use in difficult soil conditions where a pipe or cable is to be installed under a road or in an area that cannot be dug. The PD-6 can install pipes by either directional thrust boring or pipe bursting. These machines are excellent in areas where space is limited.

The PD-6 will operate from a pit only 56 inches long and has a thrust force of 84,822 lbs@ 3,000 psi. The maximum push rate of PD-6 is 7 feet/minute and it can install up to 8-inch ID pipe in most compressible soils. The PD-6 is great for the most difficult piping areas. This piece of equipment is also compact to allow you to fit in difficult spaces.

Benefits

These directional thrust boring pieces of equipment can assist you in the most difficult of terrain to install piping. You can ensure that nothing will be compromised or damaged when using one of these pieces of equipment. They are small and compact enough to make the job easier as well.

Contact Our Team Today

If you are interested in our range of trenchless equipment, contact our team here at Pow-R Mole Trenchless Solutions today. Consider one of the three options listed above for your piping or plumbing business. Feel free to call us or fill out the form on this website to get in touch with our friendly staff.
