Hydraulic Power Packs
LEARN MORE ABOUT OUR HYDRAULIC POWER UNITS
Pow-r Mole offers hydraulic power units for residential, commercial, municipalities, and utility applications.
OUR EQUIPMENT

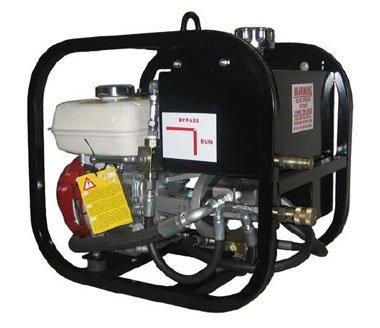

Mini Power Unit
Specifications
Height: 19"
Length: 22"
Width: 16"
Weight: 140 lbs. (wet)
Working Pressure: 2350 psi
Flow Rate: 5 GPM
Technical Notes
- Two-stage gear pump
- 5.5 HP Honda or 7 HP Kohler
- 10-micron hydraulic filtration
- 4-gallon hydraulic oil reservoir
- Pressure bypass valve for easy starting
Available Options
- System pressure gauge
Stinger Unit
Specifications
Height: 28"
Length: 45"
Width: 20 1/4"
Weight: 415 lbs. (wet)
Working Pressure: 3000 psi
Flow Rate: 20 GPM
Available Options
- System pressure gauge
- Amp meter
- Hour meter
- Oil cooler
Technical Notes
- Pressure compensating piston pump
- 20 HP, two cylinder industrial/commercial Honda engine with electric start
- 10-micron hydraulic filtration with visual change indicator filter
- 10-gallon frame reservoir protects pump and cools hydraulic oil
- Pressure bypass valve for easy starting
- Single station control for ease of use

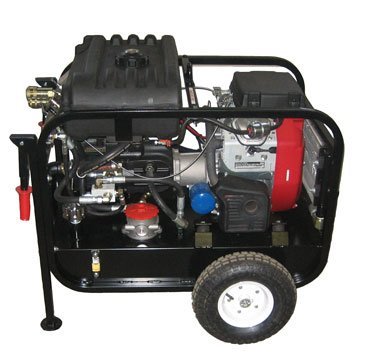

Portable Power Unit
Specifications
Height: 36"
Length: 40"
Width: 30"
Weight: 430 lbs. (wet)
Working Pressure: 3000 psi
Flow Rate: 18 GPM
Technical Notes
- Pressure compensating piston pump
- 20 HP, two cylinder industrial/commercial Honda engine with electric start
- 10-micron hydraulic filtration
- 10-gallon hydraulic oil reservoir
- Pressure bypass valve for easy starting
- Single station control for ease of use
- System pressure gauge
- Hydraulic oil cooler
Available Options
- Amp meter
- Hour meter
Diesel Power Unit
Recommended for use with Models PD-6, PD-7 & PD-8 Pushers
Specifications
Engine: 58 H.P. Volkswagen Diesel
Control: Up Front Single Station Design
Length: 50"
Height: 52"
Width: 30"
Hydraulic Pressure: 3000 psi
Hydraulic Flow: 35 GPM
Weight: 1,700 Pounds
Fuel Capacity: 18 Gallons (US)
Hydraulic Oil Capacity: 37 Gallons (US)
Noise Abatement: Fully Shrouded, Sound Suppressed (89 db)
Hydraulic Quick Couplers: Flat Faced, 1" Full Flow
Hydraulic Hose Requirements: 1" Return, 3/4" Pressure
