DIRECTIONAL THRUST BORING

PD-2

The PD-2 is a hydraulic service line replacement tool made in the USA. This one-man operated steerable thrust boring machine is designed to install pipes from a basement out to the curb stop, or under driveways and narrow roads. The PD-2 works great for those service lines you need to install under front porches, walkways, flower beds or circular driveways. The use of this machine will greatly increase your job production and decrease the cost of property restoration.

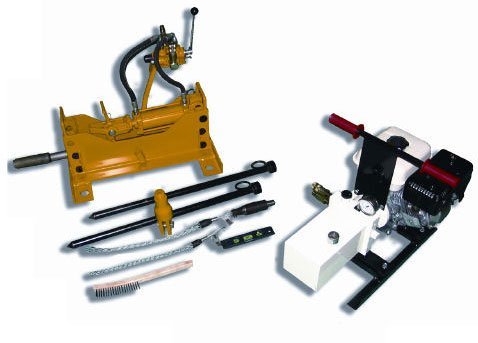

directional-trust-boring-pd2-larger-478x343

Specifications

Pusher
Weight: 22 lbs.
Height: 22 1/2"
Length: 23"
Width: 18"
Heaviest Lift: 60 lbs.
Rod Height: 2 1/2"
Thrust: 10,000 lbs.
Roller Rod Guides

Hydraulic Power Unit
Power: 5.5 hp Honda
Weight: 82 lbs.
Hydraulic Pressure: 2050 psi
Built-In Relief Valve
Pressure Gauge
Low Oil Shut Down
Pressure By-Pass
Flow Rate: 3 gpm
Dripless Couplings
