LATERAL PIPE INSPECTION
Commercial Video Inspection
Pearpoint’s P340 flexiprobe Pushrod Sewer Camera Systems can be used in a range of pipe inspection application from domestic to industrial. At the heart of the P340 flexiprobe system are the ruggedized and weatherproofed P340 and P340+ flexiprobe controllers, with the P340+ controller featuring a built-in Lithium-Ion battery. Both controllers record high quality digital video or images with a single button press, and display them on an ultra-bright 8” TFT screen. Advanced digital capabilities mean that users can zoom, pan and rotate images during recording to focus in on problem areas. The P340(+) flexiprobe system can be adapted to many different inspection requirements:
- a choice of 1” (25mm) or 2” (50mm), ultra-durable cameras. The 2" (50mm) camera is self-levelling, always keeping the video picture upright when navigating a pipe.

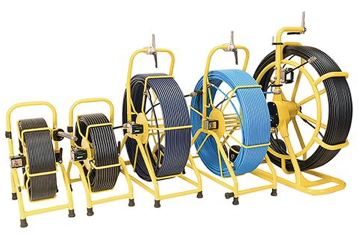

- a range of 5 different reels from the extra-flexible 100’ (30m) P341 Plumbers reel to the 500’ (150m) P343 reel designed to push for longer distances.
Compact reel designs ensure that the systems are fully transportable, and protected in transit. A wide range of compatible sondes, skids, brushes and accessories completes the package, allowing inspection of pipes up to 9” (230mm) in diameter.
The ruggedized P340+ controller’s integrated lithium-ion battery removes the inconvenience and set-up time of an external power lead. A push-button fuel gauge provides a quick indication of remaining power even when the controller is switched off.
Flexible USB and Compact Flash Data Storage
The P340 and P340+ controllers fully support the popular USB flash drive. Users can simply plug memory sticks into the controller to record, store or copy inspection videos, photos and observations. The system is also compatible with Compact Flash memory cards, and can be connected directly to a PC to transfer data without the need for a card reader.
Pearpoint has developed a flexible Plumbers system designed to travel through waste water systems, negotiating most traps (from 2"/50mm) and bends (from 1 1/4"/32mm) found in commercial and residential properties. With a flexible built-in sonde facilitating pinpointing of the camera position, this new 100’ (30m) reel is the ideal tool for smaller diameter plumbing inspections.
Outstanding Picture Quality from Durable Cameras
The P340 flexiprobe systems offer a choice of new ultra-tough, high resolution, cameras constructedPipePhoto from 303 stainless steel, and capable of withstanding 11bar of pressure – the equivalent of working 330’ (100m) underwater.
1” (25mm) and 2” (50mm) models are available, combining focusable lenses with dramatically improved video resolution and the latest generation ultra-bright white LEDs to deliver a perfect and clear picture in most pipe conditions. More productive on-site The P340 system controllers automatically organize jobs by client, site and survey - making reporting and reviewing videos, photos and observations straightforward. The pre-installed comprehensive, and customizable, reporting system can be used to quickly fill out report observations on-site. It can also produce SEWER.DAT report files, with no need to plug into a computer.
Manage Data and Produce Reports
The new Flexisight™ Manager software is the ideal PC companion for the P340 range, allowing the operator to import, store and manage their digital inspection data.
Comprehensive reports can also be created with the operator’s company branding, pipe graphics, descriptions and color coded defect grading (requires Microsoft Word 97 or later). Microsoft Word is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
vCam-5 Inspection Camera Systems
Vivax-Metrotech camera systems give you the flexibility to cover a range of inspections including indoor drain lines, municipal collection systems, residential plumbing, indoor commercial lines, and lateral lines from 3 inches up to 8 inches in diameter.
Our sewer inspection camera uses the latest technology packaged in a rugged, lightweight, compact profile made specifically for the harsh conditions related to sewer lateral inspections. The vCam-5 camera systems give you the features you want as standard equipment, at a competitive fair price.
All Vivax-Metrotech camera systems are backed up by a full one-year warranty, on-site training and local support through our dealer network. The new vCam-5 products are backwards compatible with our previous vCam-Digital and vCam-Modular products.
vCam-5 Control Module
The vCam-5 control module is designed and manufactured with the plumbing contractors’ needs in mind. The latest technology in imaging and recording are packaged in a rugged ABS injection molded housing made specifically for harsh conditions.
The feature-packed control module includes:
- One touch recording to either USB, SD or internal 300 GB HDD
- One touch JPEG snapshots to USB, SD or HDD
- 3 x Zoom for up close-up viewing
- Voice-over function with both internal and external microphone
- Full QWERTY weatherproof keyboard
- Text writer with 20 pages of storage and multi-color text
- Multi-color on screen display showing distance out, date and time
- 5 Watt 512Hz Sonde
- AC/DC operation with rechargeable internal battery
- Wi-Fi and RJ45 Ethernet computer interfaces
- RS232 socket for 3rd party software integration
- Works with older vCam series reels
- Real-time video streaming to your smart phone through Wi-Fi connection
